Product Details
＋

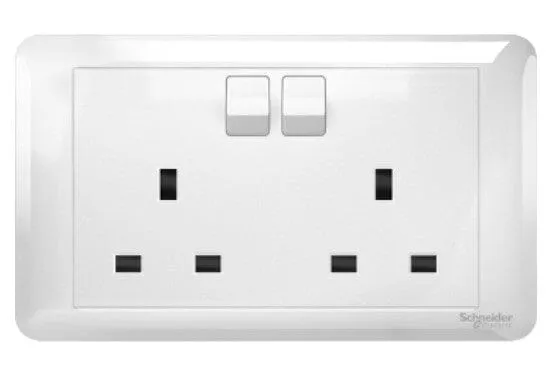

Schneider 13A Twin Gang Switched Socket | Model : A3GT25-WE-G2
Specifications :
| Range | Affle Plus |
|---|---|
| Product or component type | Switched socket |
| device presentation | Mechanism |
| Outlet poles configuration | 3P with shutter |
| Outlet standard description | With earthing contact |
| Outlet standard deviation | BS 1363 |
| Colour tint | White |
| number of terminals | 3 |
| Socket number | 2 |
|---|---|
| Device mounting | Flush |
| Fixing mode | Screw |
| Surface finish | Glossy |
| Surface treatment | Untreated mechanism cover |
| Rated current | 13 A socket-outlet |
| [Ue] rated operational voltage | 250 V AC 50/60 Hz |
| Service life in cycles | 15000 cycles |
| Electrical durability | 15000 cycles |
| Connections - terminals | Screw terminal |
| Screwdriver shape | Philips No 2 |
| Number of cables | 2 |
| Clamping connection capacity | 2.5...4 mm² for rigid cable(s) 2.5...4 mm² for stranded cable(s) 2.5...4 mm² for flexible cable(s) |
| Wire stripping length | 14 mm |
| Material | PC (polycarbonate) Brass |
| Height | 86 mm |
| Width | 146 mm |
| Depth | 29.2 mm |
| Embedding depth | 18.3 mm |
| Net weight | 0.114 kg |
| Ambient air temperature for storage | -5…45 °C |
|---|---|
| Ambient air temperature for operation | -5…45 °C |
| Standards | BS 1363 MS 589 |
| Product certifications | SIRIM |
| IP degree of protection | IP20 |
